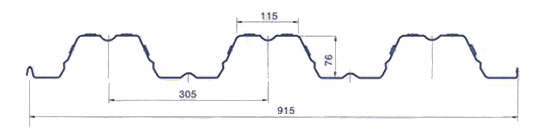

Decking Machine WLFM76-305-915
Introduction
Steel floor deck sheet is rolled by WLFD series steel floor decking roll
forming machine, the finished products are of many features, such as simple
shape, large wave height, high intensity and good adhesiveness when pouring the
concrete together with the welded steel wire net on-site. In the high-storey
building, it not only can save steel mould board, but also reduce the bearing
of the floor; on basis of equal capacity, it reduces the steel amount of
engineering useage, so that it saves cost of investment.

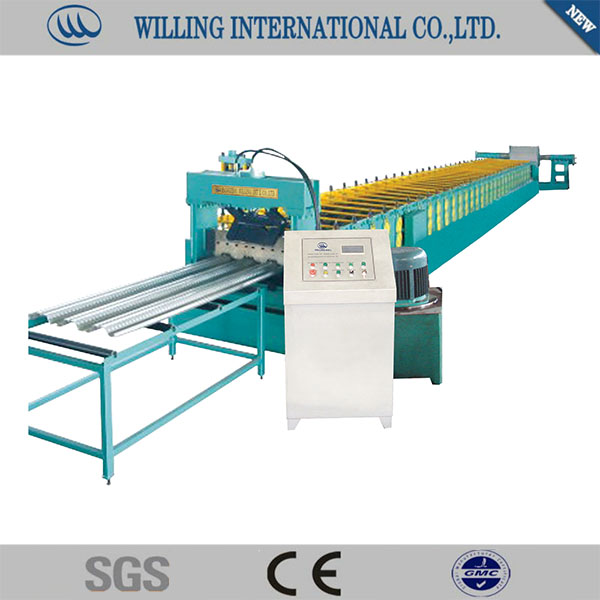

WLFD series steel floor deck roll forming machine consists of uncoiler and its
base, infeed guides, fixed position driven forming stations, shearing device,
hydraulic station, PLC control console and so on. Our company has dozens of
profile models for this series roll forming machine, such as WLFD66-225-675,
WLFD76-344-688, and etc. We can design different kinds of profile and fittings
for downpipe machine, as per customers' requirements.
Working Flow
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to
Support Table.
|
型号Model
|
WLFD38-153.3-920
|
|
GMaterial 适用原材料
|
类型Typle
|
Galvanized Steel
|
Aluzinc Steel
|
|
厚度（mm）Thickness
|
0.6-1.0
|
0.8-1.2
|
|
强度（Mpa）Yield stress
|
300-350
|
230-300
|
|
成型线速度（m/min）Max. Forming speed
|
8-12
|
|
轧辊材料Roller material
|
45#镀铬 45# steel with
chrome
|
|
辊轮驱动方式Roller driven type
|
链传动Chain transmission
|
|
控制方式Controller
|
PLC
|
|
操作台方式Operation
|
触摸屏+按钮Touch screen and button
|
|
液压系统压力（Mpa）Hydraulic system pressure
|
12
|
|
液压站电机功率（KW）Hydraulic station motor power
|
5.5
|
|
主电机功率（KW）Main motor power
|
22~30
|
18.5
|
|
总功率（KW）Total power
|
27.5~35.5
|
24
|
|
总重量（Kg）Total weight
|
约18000 About 18000
|
约18000About 18000
|
