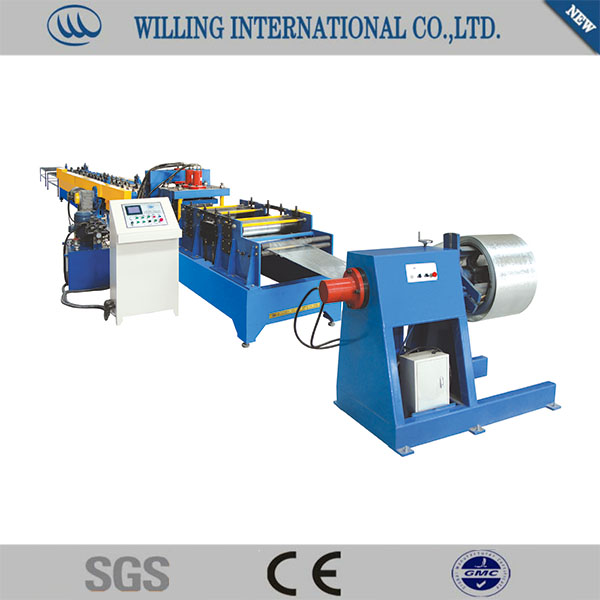

CZ Changeable purlin machine
Introduction
C or Z shape purlins are made from hot/ cold rolled steel strips, and
straightened, hole punched, cut to length, and roll formed by WLPM series C/Z
changeable shape purlin roll forming machine. Through changing, this product
line can make the change of the shape C or Z purlin, besides change different
sizes of C or Z shape purlin. This change for shape and sizes of C/Z purlin can
be realized by automatic mode, or manual adjusting mode.
WLPM series C/Z shape purlin product line consists of uncoiling system, straightening
system, hole punching system, shearing system, roll forming system, products
support table, hydraulic system, automatic controlling system, and so on. It’s
a high efficiency equipment of making purlin, which is suitable for current
enterprises.
Working Flow
Uncoiling→Sheet Guiding→Straightening &Levelling→Hole Punching→Measuring
Length &Shearing→Roll Forming→Sheet to support table.
|
项目Item
|
参数Parameters
|
|
板型Profile
|
C型及Z型檩条 C and Z purline
|
|
Material
适用原材料
|
类型Typle
|
钢带 Steel strip
|
|
厚度（mm）Thickness
|
1.6-3.0
|
1.6-3.0
|
|
强度（Mpa）Yield stress
|
230-300
|
300-350
|
|
最大成型线速度（m/min）Max. Forming speed
|
30
|
|
轧辊材料Roller material
|
D2
|
|
辊轮驱动方式Roller driven type
|
液压驱动 Hydraulic motor driven
|
|
控制方式Controller
|
PLC
|
|
操作方式Operation
|
Windows2000
|
|
液压系统压力（Mpa）Hydraulic system pressure
|
25
|
|
液压站电机功率（KW）Hydraulic station motor power
|
60
|
|
总功率（KW）Total power
|
65
|
|
总重量（Kg）Total weight
|
约 18000 About
|
