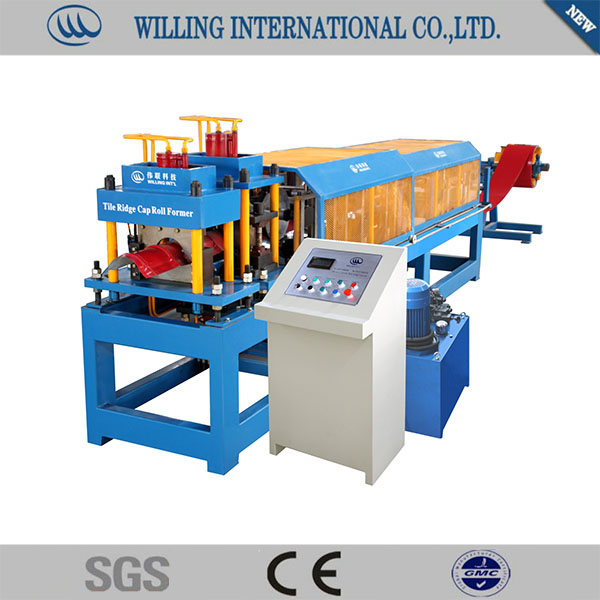

Tile Ridge Cap Machine WLFM56-150
Introduction
The archaistic tile sheet is rolled and pressed by the WLTM series modular tile
sheet roll forming machine, it has many features, such as good appearance,
primitive simplicity and elegance, unique style, noblest grade, and etc. It is
widely used in garden style factories, scenic resorts, pavilions, hotels,
villas, exhibition halls, country clubs, and so on for outdoor decorations.
WLTM series modular tile sheet roll forming machine consists of uncoiler and
its base, infeed guides, fixed position driven forming stations, pressing die,
shearing device, hydraulic station, PLC control console and so on. Our company
has dozens of profile models for this series roll forming machine, such as
WLTM25-183-1100, WLTM28-207-828, and etc. We can design different kinds of
profile and fittings for machine, as per customers' requirements.
Working Flow
Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length
&Shearing→Sheet to Support Table.
|
型号Model
|
115-284
|
|
Material 适用原材料
|
类型Typle
|
彩钢板 Color steel sheet
|
|
厚度（mm）Thickness
|
0.3-0.7
|
|
强度（Mpa）Yield stress
|
230-300
|
|
生产速度（m/min）Max. Forming speed
|
6~10
|
|
轧辊材料Roller material
|
45#镀铬45# steel with
chrome
|
|
辊轮驱动方式Roller driven type
|
链传动Chain transmission
|
|
控制方式Controller
|
PLC
|
|
操作台方式Operation
|
触摸屏+按钮Touch screen and button
|
|
液压系统压力（Mpa）Hydraulic system pressure
|
12
|
|
液压站电机功率（KW）Hydraulic station motor power
|
5.5
|
|
主电机功率（KW）Main motor power
|
4
|
|
总功率（KW）Total power
|
9.5
|
|
总重量（Kg）Total weight
|
约10000 About 10000
|
