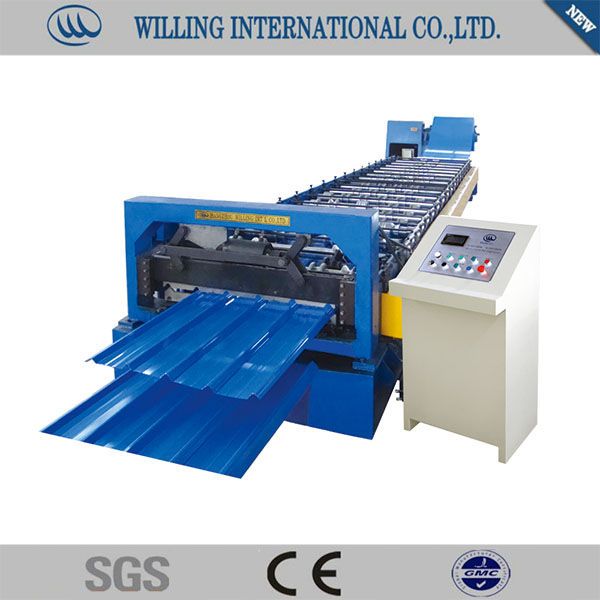

Roll Former WLFM25-205-820/1025
Introduction
WLDL series roll forming machine consists of uncoiler and its base, infeed
guides, fixed position driven forming stations, shearing device, hydraulic
station, PLC control console and so on. Our company has hundreds of profile
models for this series roll forming machine, such as WLDL66-77, WLDL50-373,
WLDL18-76, and etc. We can design different kinds of profile and fittings for
machine, as per customers’ requirements.
Working Flow
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support
Table.
|
型号Model
|
25-205-8201025
|
|
Material 适用原材料
|
类型Typle
|
彩钢板Color steel sheet
|
|
厚度（mm）Thickness
|
0.4-0.7
|
|
强度（Mpa）Yield stress
|
230-300
|
|
成型线速度速度（m/min）Max. Forming speed
|
8-12
|
|
轧辊材料Roller material
|
45#镀铬45# steel with
chrome
|
|
辊轮驱动方式Roller driven type
|
链传动Chain transmission
|
|
控制方式Controller
|
PLC
|
|
操作台方式Operation
|
触摸屏+按钮Touch screen and button
|
|
液压系统压力（Mpa）Hydraulic system pressure
|
12
|
|
液压站电机功率（KW）Hydraulic station motor power
|
5.5
|
|
主电机功率（KW）Main motor power
|
4
|
|
总功率（KW）Total power
|
9.5
|
|
总重量（Kg）Total weight
|
约10000 About 10000
|
